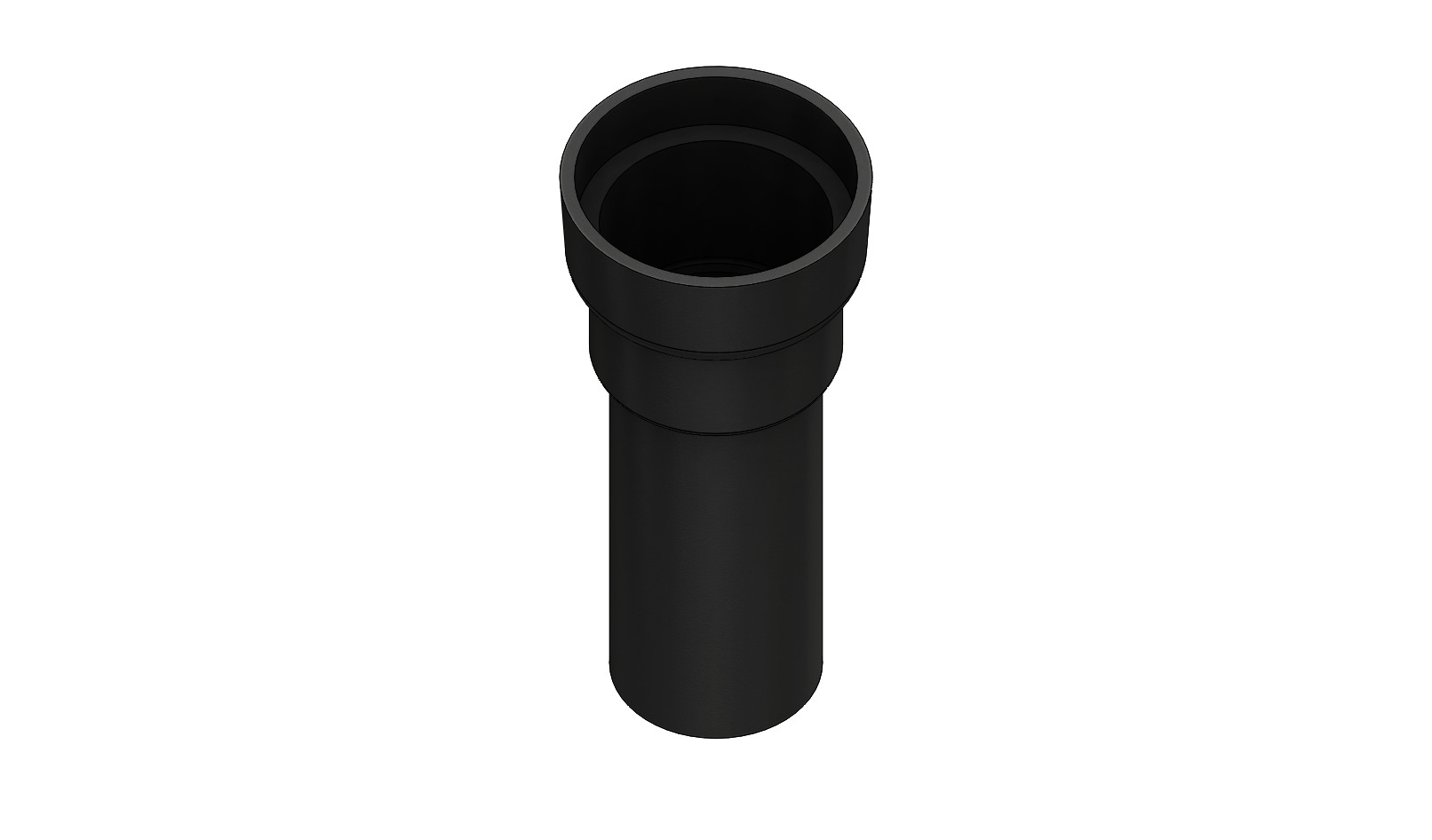

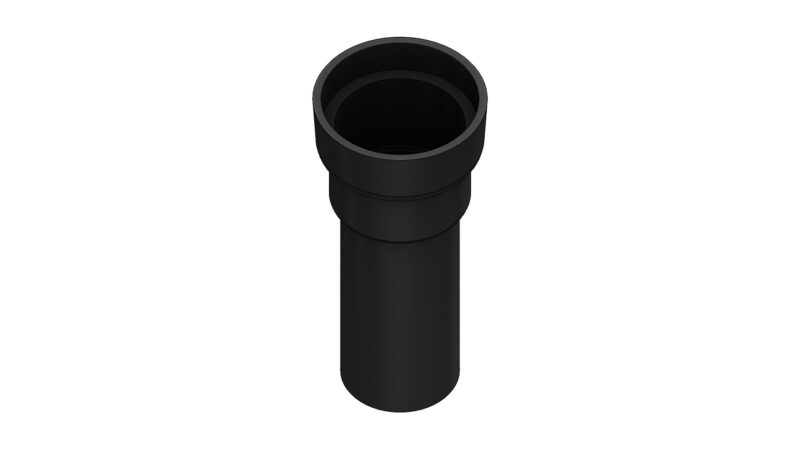

5 SL Valve Box Extension
The 5 SL Valve Box Extension from NEK Castings & Infrastructure Products is a critical addition to your valve box system, providing flexibility and adaptability for deeper installations. Built from premium cast iron per ASTM A48 Class 30B, this extension ensures a secure fit, durability, and long-lasting performance in demanding environments.
Key Features
- Material: Cast Iron per ASTM A48 Class 30B
- Dimensions:
- Top Outer Diameter: 210 mm
- Top Inner Diameter: 190 mm
- Base Inner Diameter: 130 mm
- Base Outer Diameter: 143 mm
- Total Height: 462 mm
- Wall Thickness: 6.5 mm
- Extension Height: 170 mm
- Weight: 14 kg
BASIC SPECIFICATIONS
Top Outer Diameter (mm)
210
Top Inner Diameter (mm)
190
Base Inner Diameter (mm)
130
Base Outer Diameter (mm)
143
Total Height (mm)
462

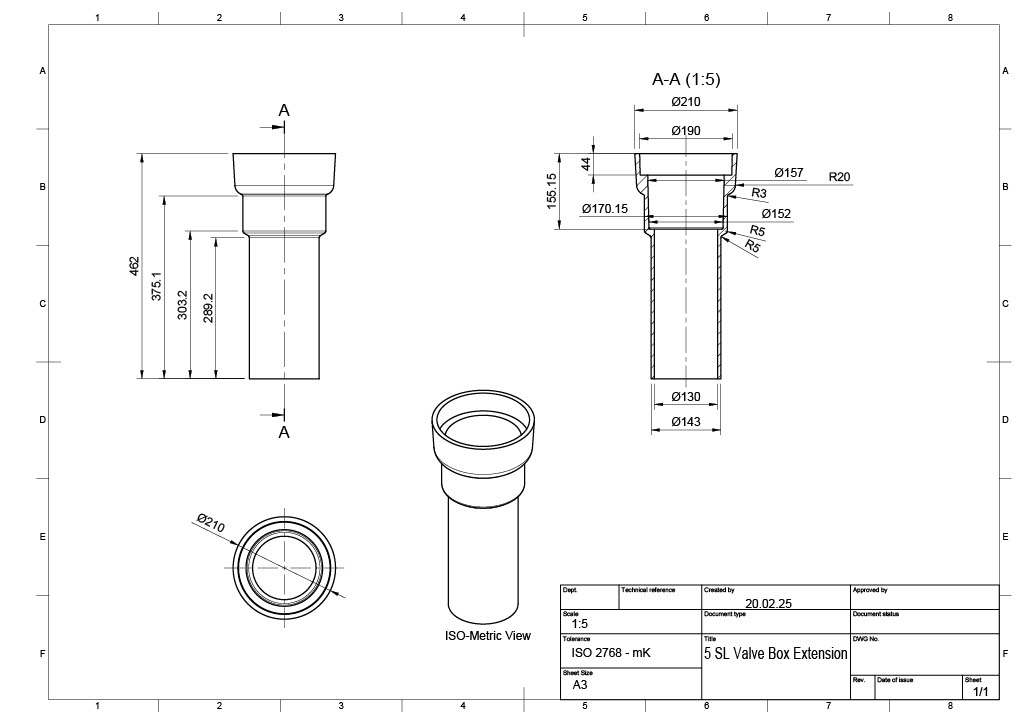

DETAILED SPECIFICATIONS
| Outer Diameter (Top) | 210 mm |
| Inner Diameter (Top) | 190 mm |
| Inner Diameter (Base) | 130 mm |
| Outer Diameter (Base) | 143 mm |
| Total Height | 462 mm |
| Wall Thickness | 6 mm |
| Extension Height | 170 mm |
| Weight | 14 kg |
Adjustable Depth:Extends the valve box system to accommodate deeper installations, ensuring easy ground-level access to critical valves.
Durability and Stability: Manufactured from high-strength cast iron, the extension is built to endure external pressures and environmental conditions.
Seamless Integration: Precision design ensures compatibility with 5 SL Upper and Lower Valve Boxes, maintaining structural integrity and reliability.
- Standards: Complies with ASTM A48 Class 30B specifications, ensuring high quality and performance.
- Quality Control: Rigorous testing for tensile strength, hardness (174-210 BHN), and structural integrity.
APPLICATIONS
Seamless Depth Adjustment for Valve Systems
| Extended Reach | Adjusts the system height for installations at deeper levels. |
| Secure Connection | Precision-fit design maintains structural integrity across the valve box assembly. |
Compatibility with Upper and Lower Valve Boxes
| Precise Fit | The tapered design ensures tight, secure stacking, eliminating misalignment issues. |
| Enhanced Protection | Adds an additional layer of shielding to prevent environmental damage. |
Essential for Water and Sewer Infrastructure
The 5 SL Valve Box Extension plays a key role in municipal, industrial, and commercial water systems by enabling ground-level access at varying installation depths.
| Operator Convenience | Simplifies maintenance and inspections without extensive excavation. |
| System Longevity | Protects valves from external forces, preserving system performance over time. |
